Description

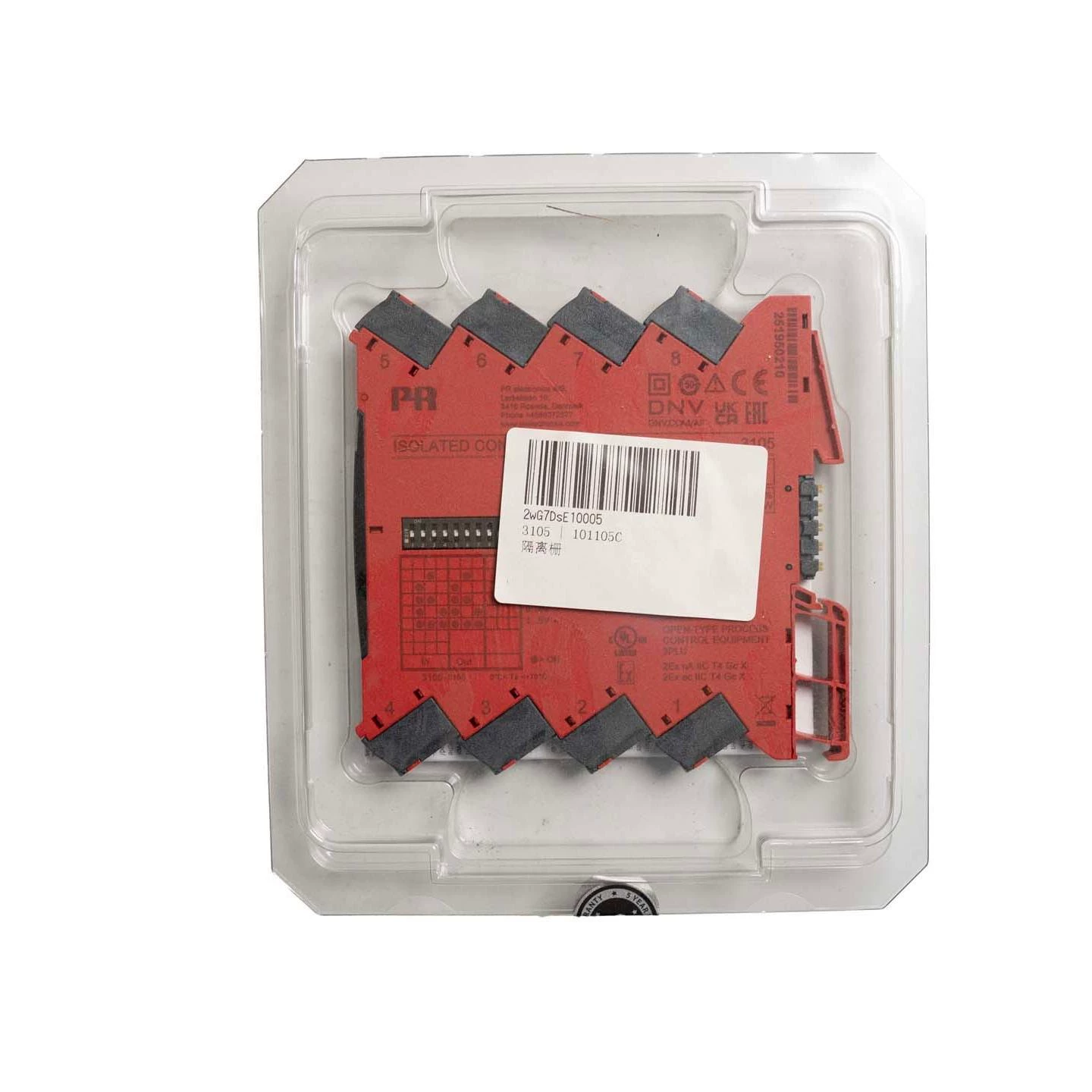

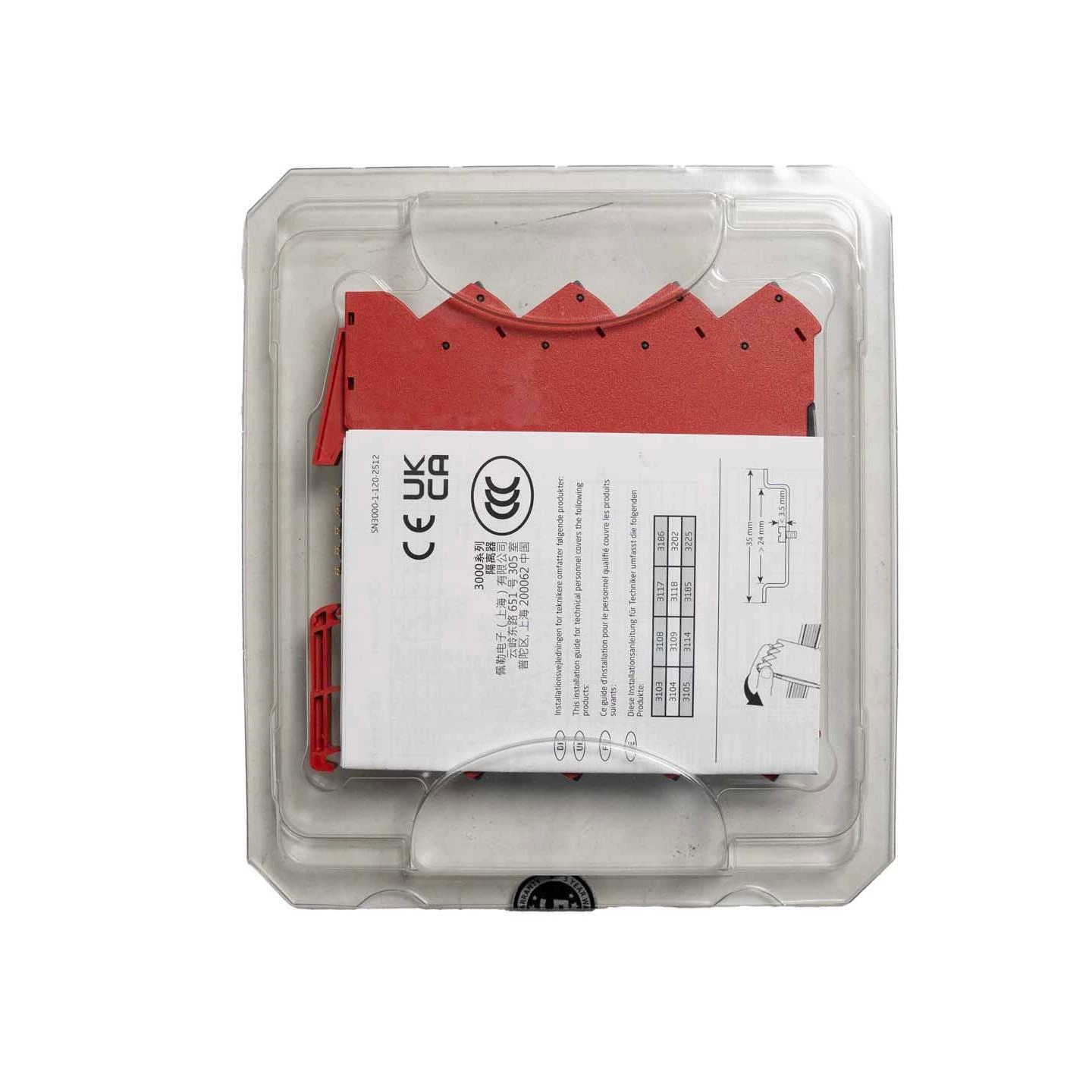

Danish PR Signal Isolator 3105 Original genuine product, brand new and unused, with original packaging. 24VDC Operation Gives present isolation. PLCs, Sensors & Other Uses. – Ideal for industrial automation. Full specifications and guaranteed quality.
Functional highlights

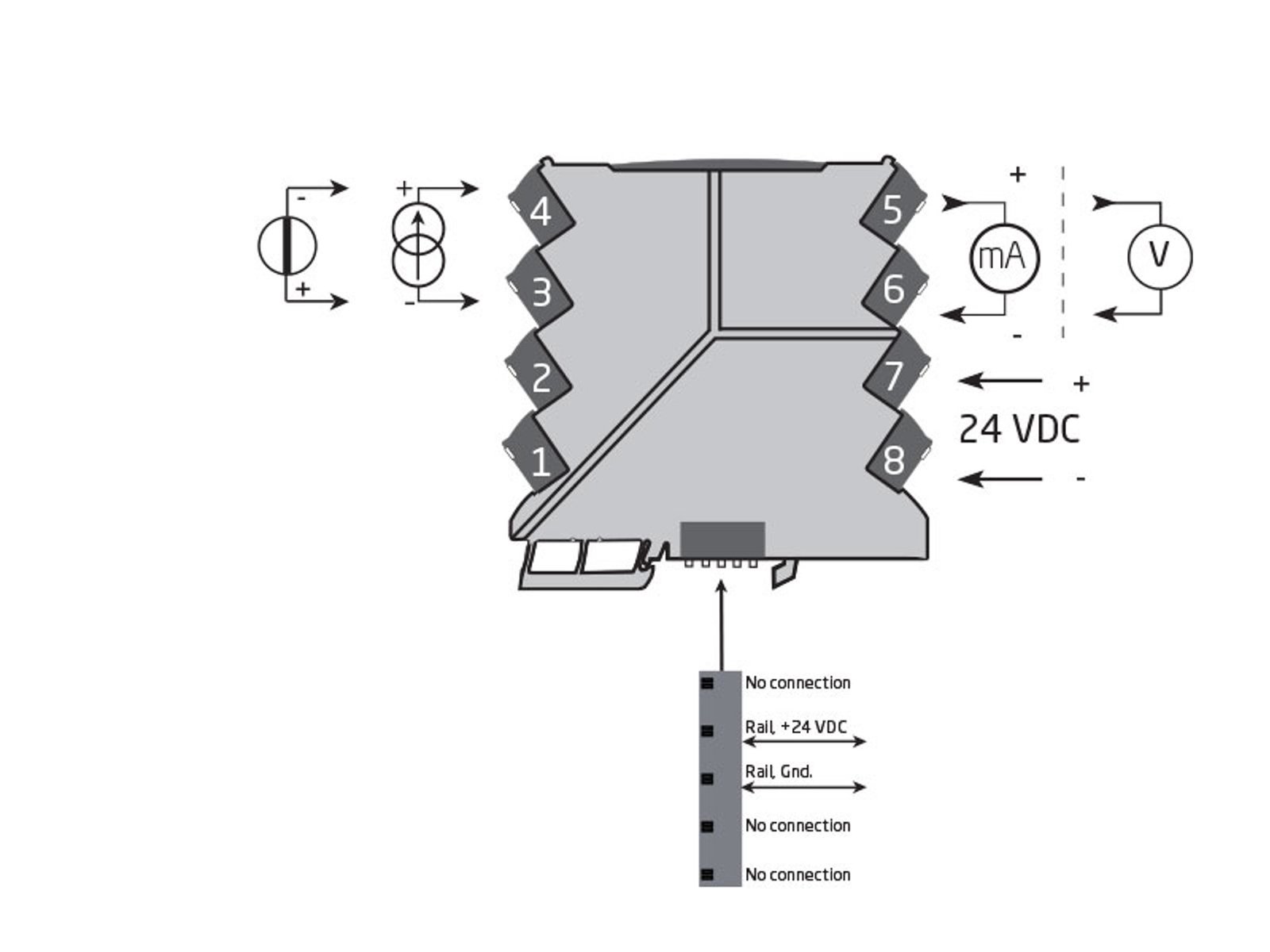

- Galvanic separation of analog current and voltage signals.
- A competitive choice in terms of both price and technology for galvanic isolation of all signal types to SCADA systems or PLC equipment.
- High 3-port isolation provides surge suppression that protects the control system from transients and noise and eliminates ground loops.
- All terminals are over-voltage protected, polarity protected, and short-circuit protected.
- Approved for marine applications.
Technical highlights
- Flexible 24 VDC (±30%) supply via power rail or connectors.
- Factory-calibrated measurement ranges.
- Fast response time < 7 ms.
- Excellent signal/noise ratio > 60 dB.
- High galvanic isolation of 2.5 kVAC.
- Inputs and outputs are floating and galvanically separated.
- A green front LED indicates normal operation and malfunction.
Programming
- Easy configuration via DIP switches.
Mounting / installation
-
- The narrow 6.1 mm housing allows up to 163 units per meter.

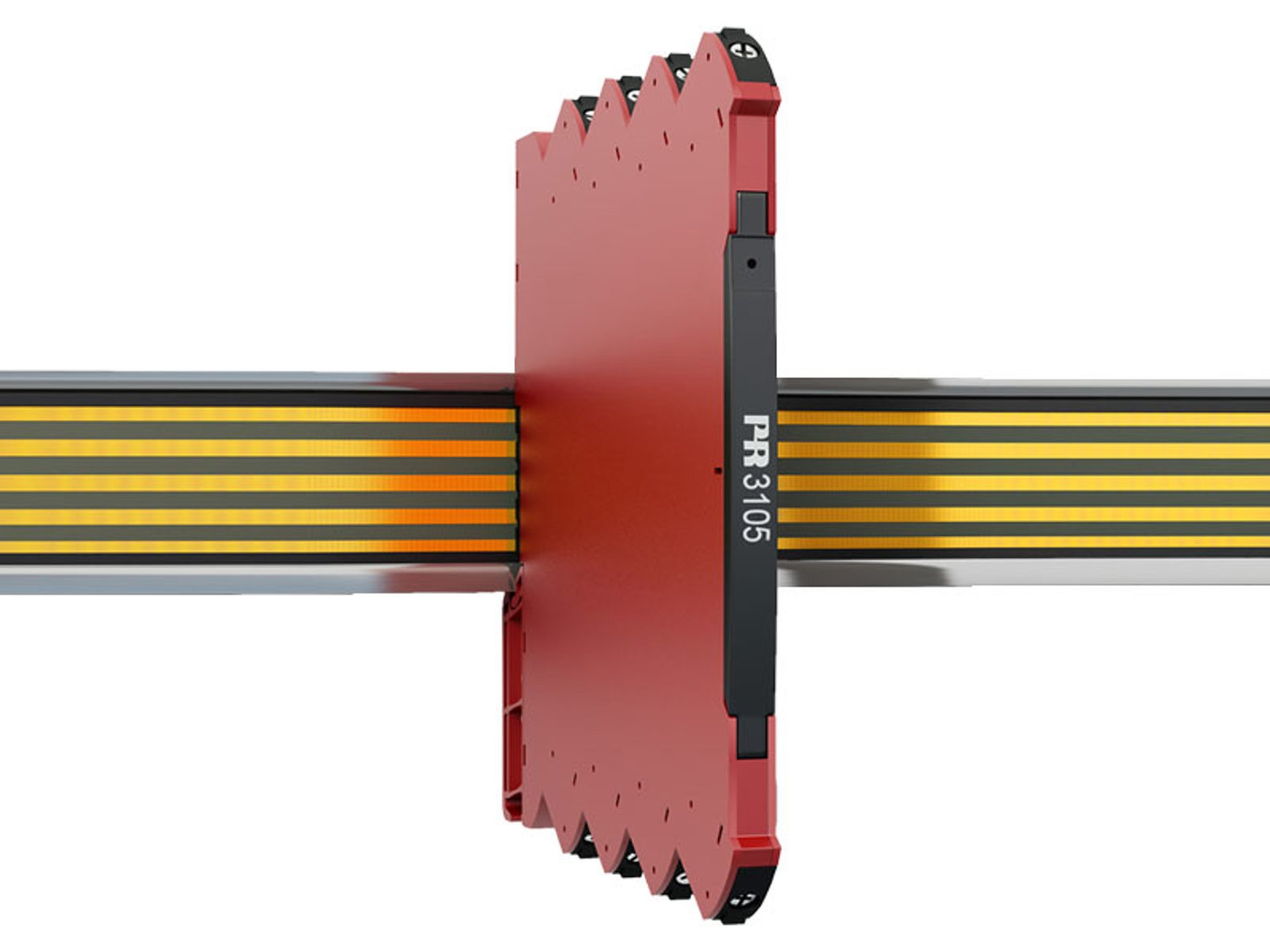

- Units can be mounted side by side, horizontally and vertically, without an air gap on a standard DIN rail, even at 70°C ambient temperature.
- Units can be supplied separately or installed on PR 9400 power rail.
