PR 3109

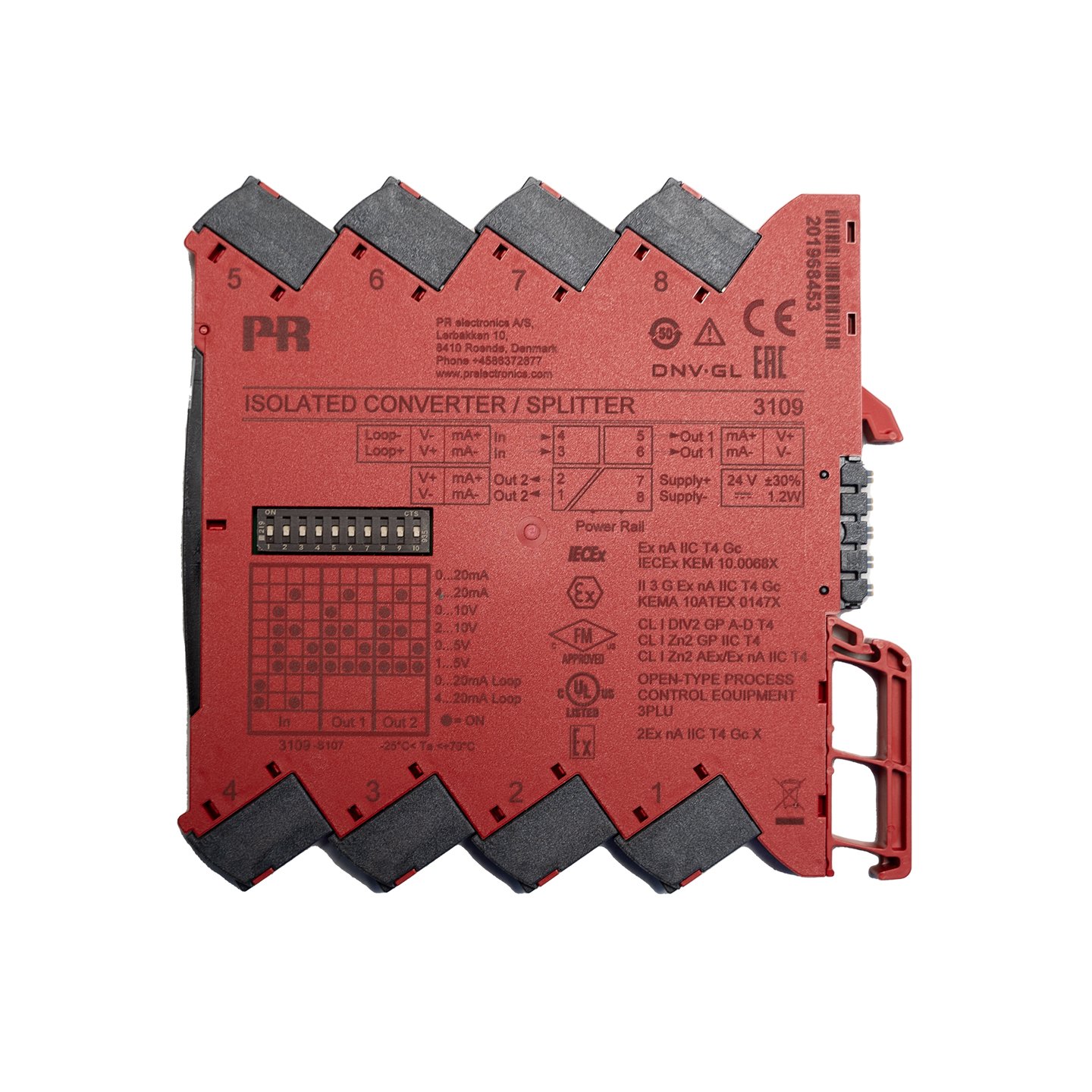

PR3109
PR 3109 - Image 3
PR Electronics 3109 PR
PR Electronics 3109
PR Electronics 3109 PR

PR 3109

Original price was: $380.00.Current price is: $280.00.

  • Isolation and conversion of standard DC signals
  • Power supply and signal isolator for 2-wire transmitter
  • Splitter function: 1 in – 2 out
  • DIP switch configuration
  • Slimline 6.1 mm housing

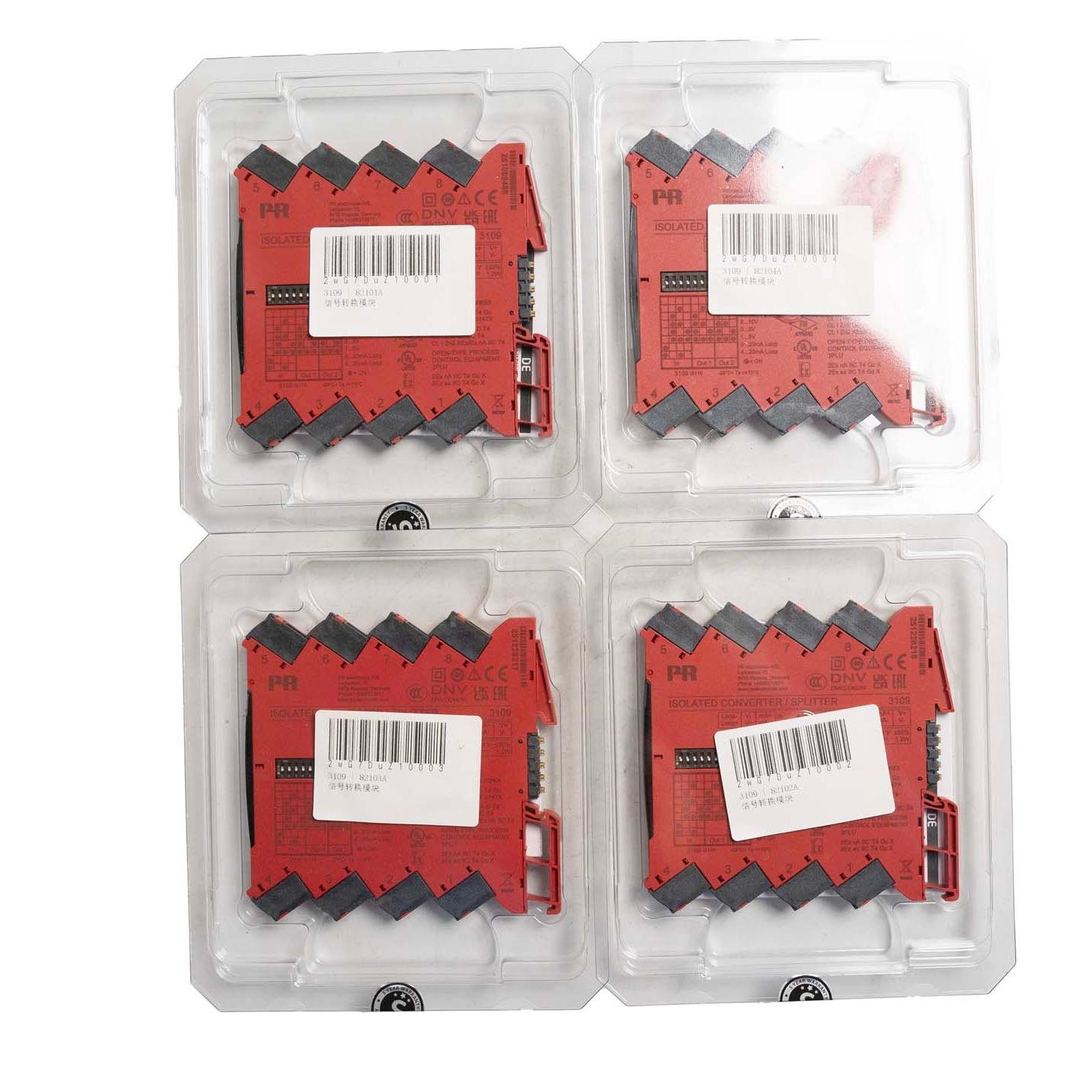

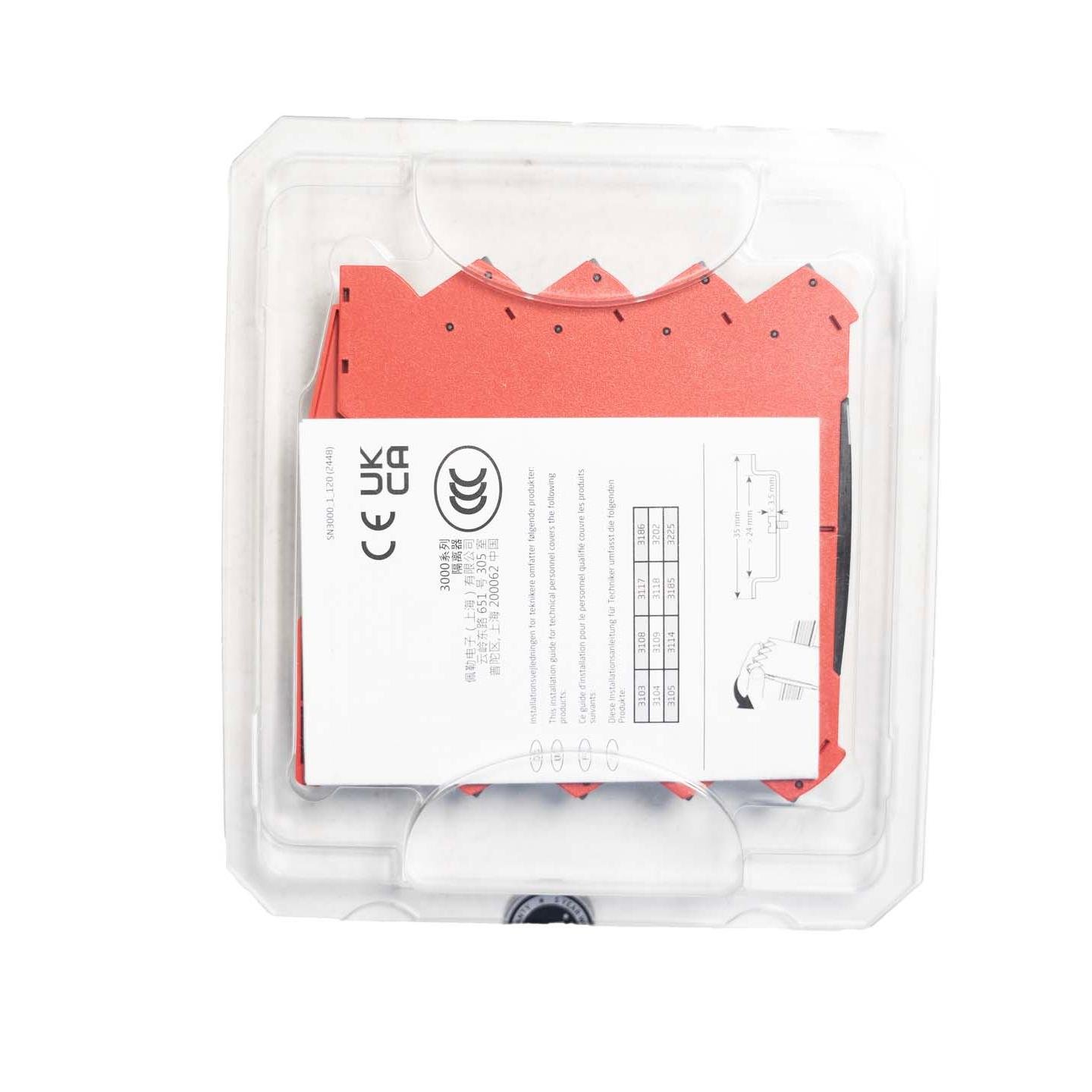

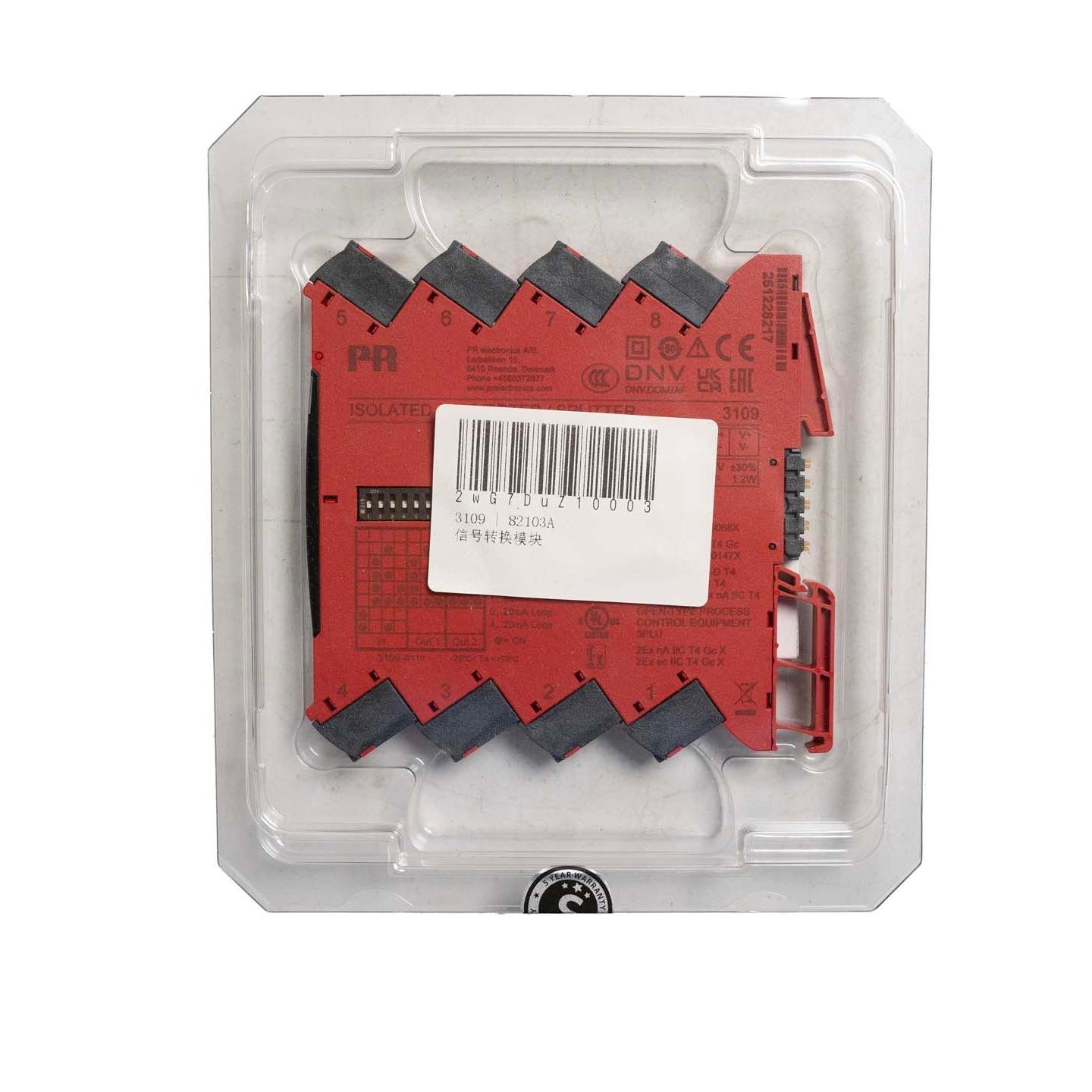

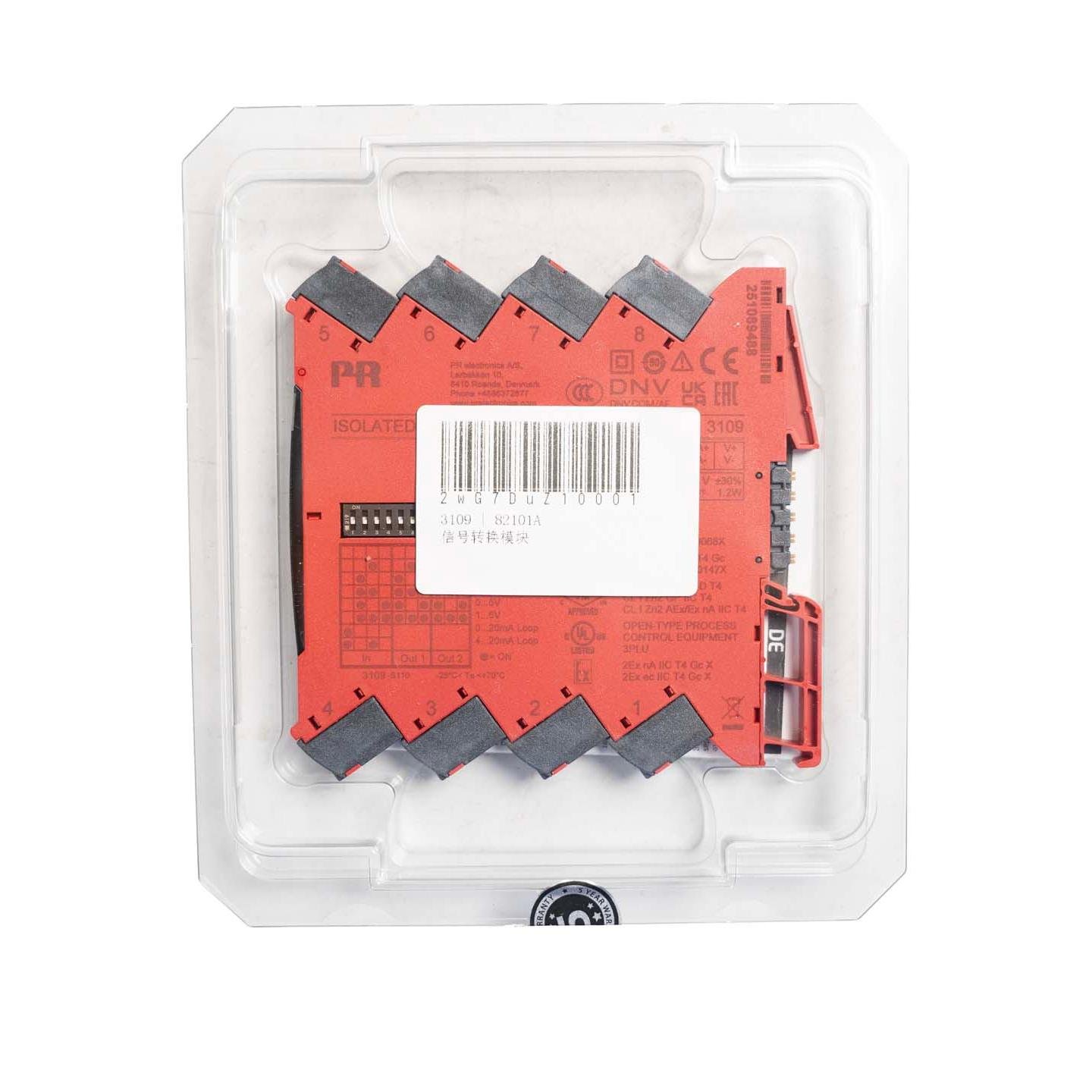

    This is a new and unused Danemark PR3109 signal isolator, complete with its original packaging. It’s a genuine Danish product, with a 24 VDC power supply, current isolation, suitability for industrial automation, PLCs, and sensors, and features a full set of parameters and proper functionality.
secure payment

Description

Functional highlights

  • Galvanic separation of analog current and voltage signals.
  • A competitive choice in terms of both price and technology for galvanic isolation of all signal types to SCADA systems or PLC equipment.
  • High 4-port isolation provides surge suppression that protects the control system from transients and noise and eliminates ground loops.
  • All terminals are over-voltage protected, polarity protected, and short-circuit protected.
  • The device can be mounted in a safe area or in Zone 2 / Division 2 areas and is approved for marine applications.

Technical highlights

  • Flexible 24 VDC (±30%) supply via power rail or connectors.
  • Factory-calibrated measurement ranges.
  • Fast response time < 7 ms.
  • Excellent signal/noise ratio > 60 dB.
  • High galvanic isolation of 2.5 kVAC.
  • Inputs and outputs are floating and galvanically separated.
  • A green front LED indicates normal operation and malfunction.
  • Wide ambient temperature range: -25…+70°C.

Programming

  • Easy configuration via DIP switches.

Mounting / installation

  • The narrow 6.1 mm housing allows up to 163 units per meter.

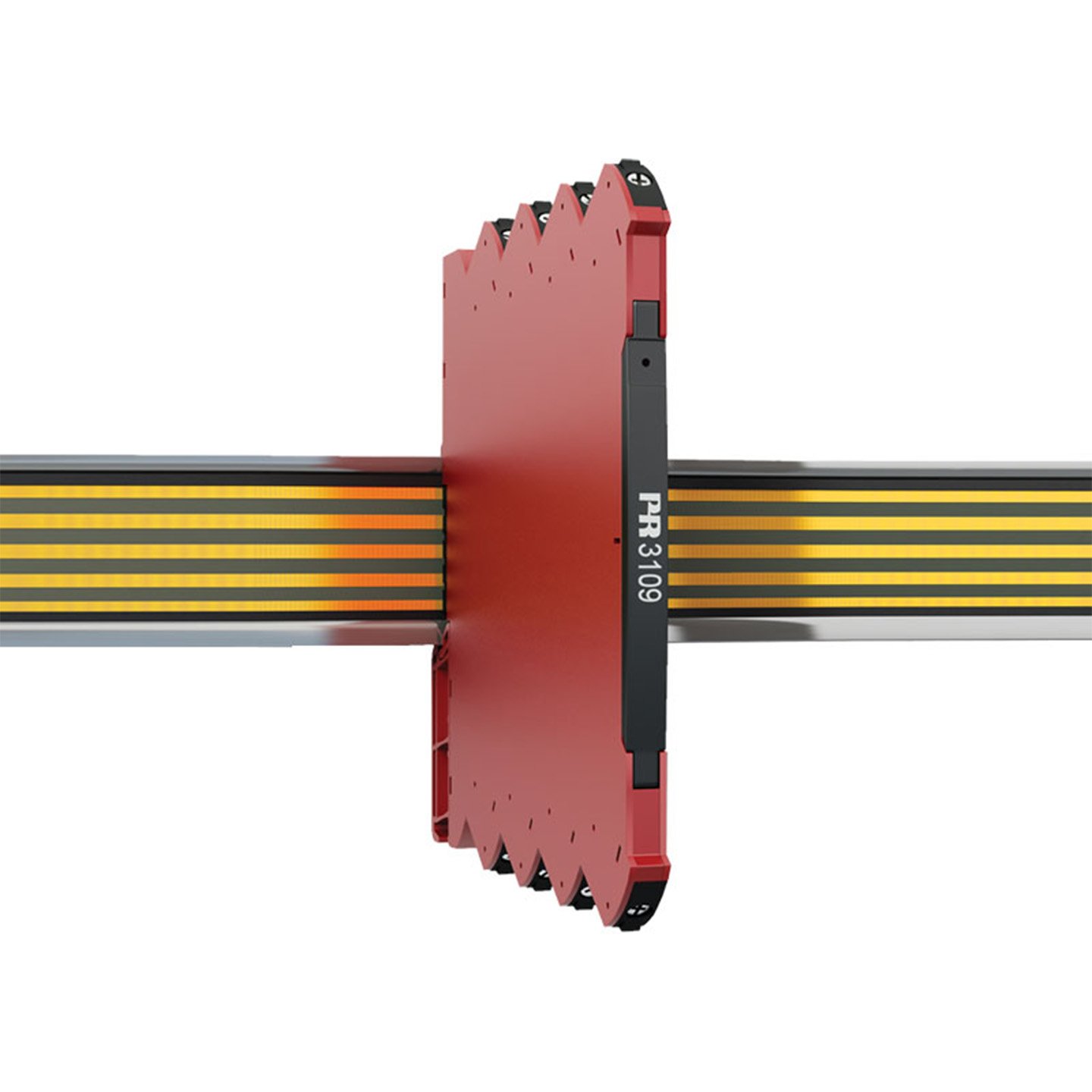

  • Units can be mounted side by side, horizontally and vertically, without air gap on a standard DIN rail, even at 70°C ambient temperature.
  • Units can be supplied separately or installed on PR 9400 power rail.
