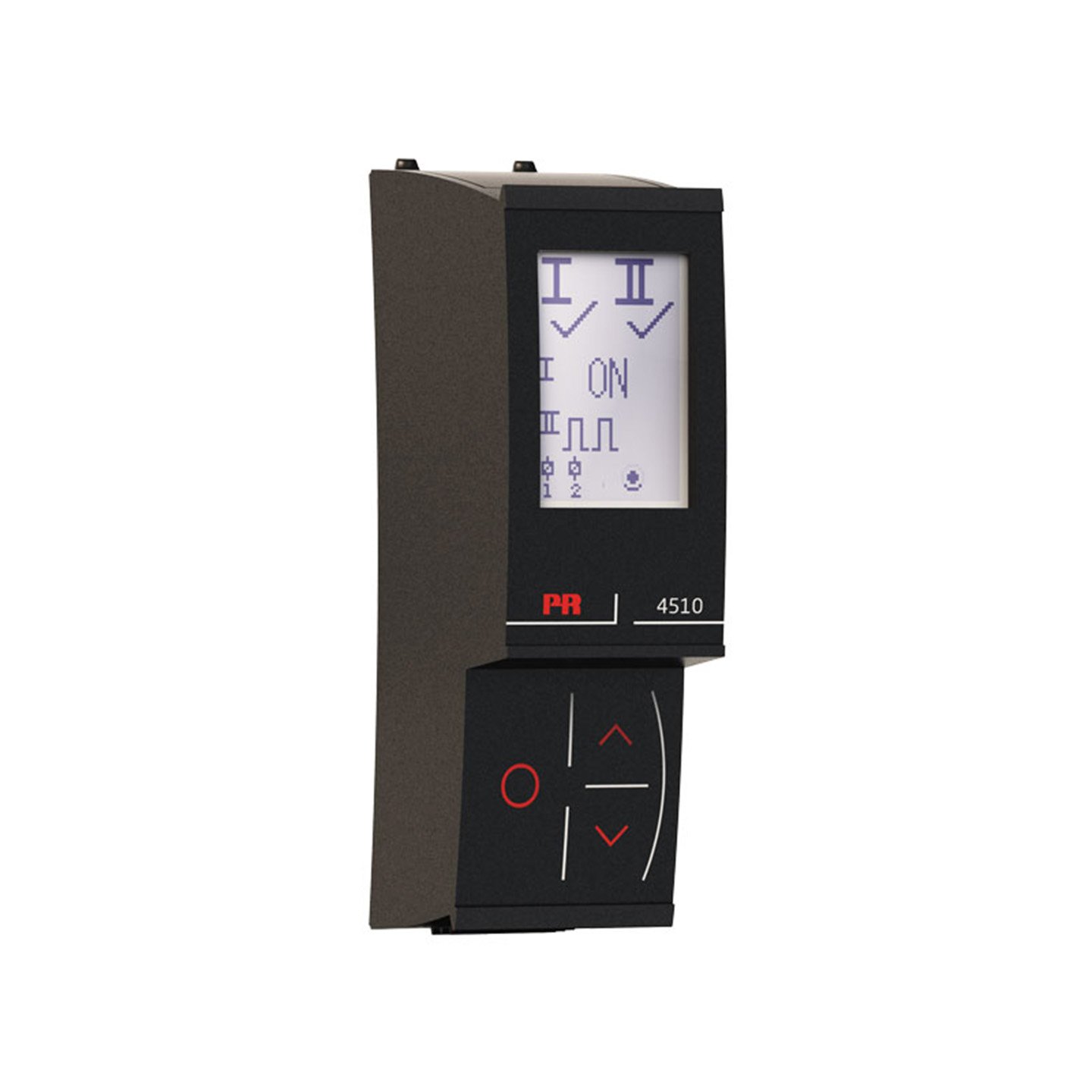

PR 4510
PR4510
4510PR
4510 PR

PR 4510

Original price was: $200.00.Current price is: $143.00.

  • Programming display for system 4000 and 9000 devices as well as selected system 3000 devices and all versions of ConfigMate 4590
  • Monitor process value and status from the built-in display
  • Scrolling help text in 7 languages
secure payment

Description

Applications

  • Communications interface for programming and modification of operational parameters.
  • The easily readable 4510 display can be used to monitor the process signal, simulate the output signal, and indicate sensor errors and internal device errors.
  • The 4510 can be moved from one device to another. The individual system 3000 / 4000 / 9000 device configuration of a transmitter can be saved and downloaded to subsequent transmitters.

Technical characteristics

  • Easy-to-read dot matrix LCD display.
  • Backup memory for loading and saving of device configuration.
  • Programming access can be blocked by assigning a password. The password is saved in the device in order to ensure a high degree of protection against unauthorized modifications to the configuration.

Mounting / installation / programming

  • Mounting in Zone 2 / Div 2.
  • All configuration data from a PR 3000 / 4000 / 9000 device can be transferred to a PC using the PR 4590.
  • When mounted on devices that are installed upside down, a menu item allows the display on the 4510 to be rotated 180° and the up/down buttons to switch function.
  • The PR 4510 is approved and certified as an add-on component for the PR 3000, 4000, and 9000 series of devices. All technical characteristics are valid with the PR 4510 attached.

    Environmental Conditions

    Operating temperature -20°C to +60°C
    Storage temperature -20°C to +85°C
    Relative humidity < 95% RH (non-cond.)
    Protection degree IP20
    Installation in Pollution degree 2 & meas. / overvoltage cat. II

    Mechanical specifications

    Dimensions (HxWxD) 73.2 x 23.3 x 26.5 mm
    Dimensions (HxWxD) w/ 4000/9000 unit 109 x 23.5 x 131 mm
    Weight approx. 20 g

    Common specifications

    Supply
    Supply voltage 6.5…20 V supplied from host 4000 / 9000 device
    Max. required power 0.15 W

    I.S. / Ex marking

    ATEX II 3 G Ex ec IIC T5
    IECEx Ex ec IIC T5 Gc
    FM, US Cl I, Div 2, Gp A, B, C, D T5; Cl I, Zn 2, Grp IIC T5 Cl I, Div 2, Gp A, B, C, D T5; Cl I, Zn 2, AEx ec IIC T5 Gc
    FM, CA Cl I, Div 2, Gp A, B, C, D T5 Cl I, Div 2, Gp A, B, C, D T5; Ex ec IIC T5 Gc

    Observed authority requirements

    EMC 2014/30/EU & UK SI 2016/1091
    ATEX 2014/34/EU & UK SI 2016/1107
    RoHS 2011/65/EU & UK SI 2012/3032

    Approvals

    ATEX DEKRA 13ATEX0098 X
    IECEx DEK 13.0026 X
    UKEX DEKRA 21UKEX0167X
    c FM us FM22US0014X / FM22CA0009X
    CCC 2025322310006444
    c UL us, UL 61010-1 E314307
    DNV Marine TAA00000JD
