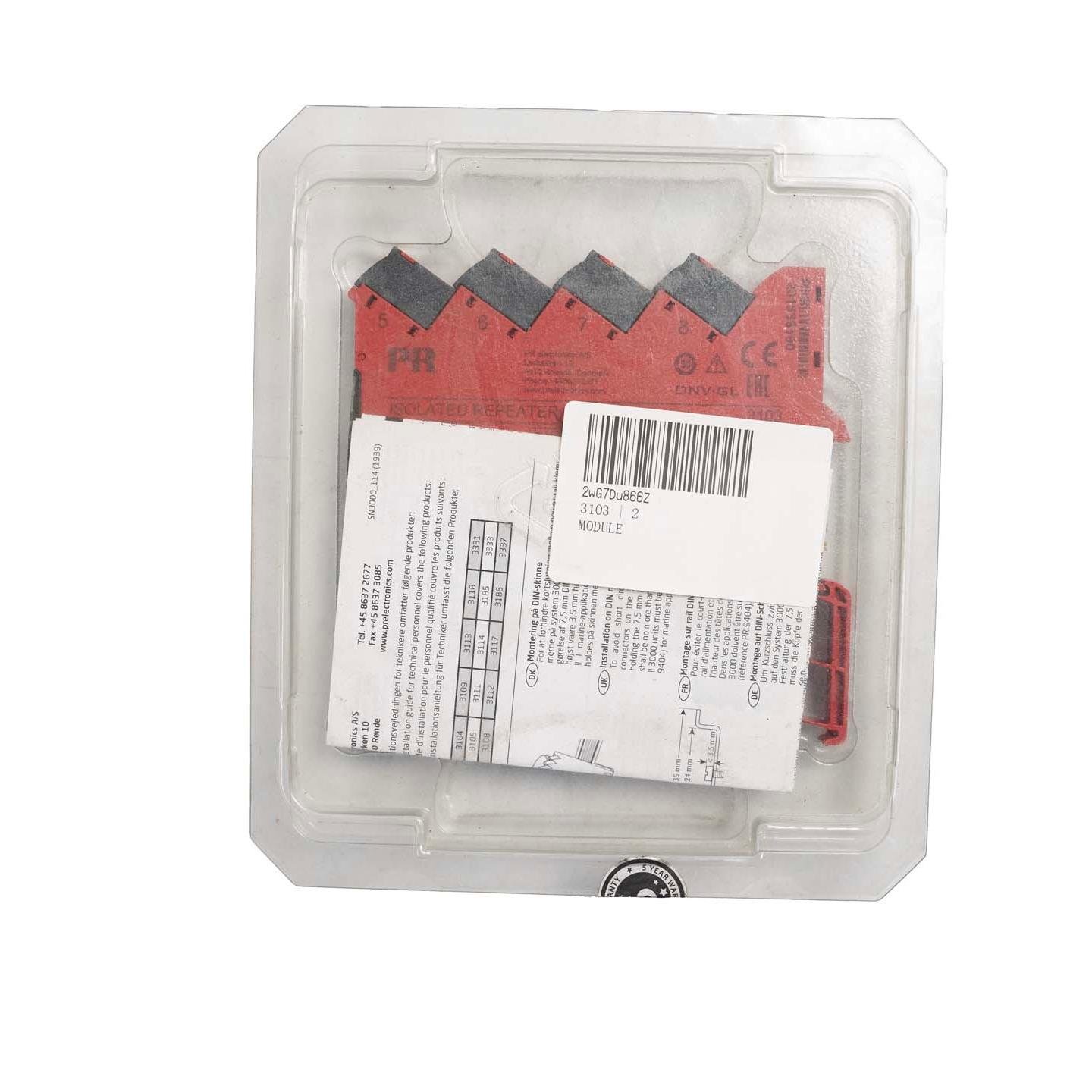

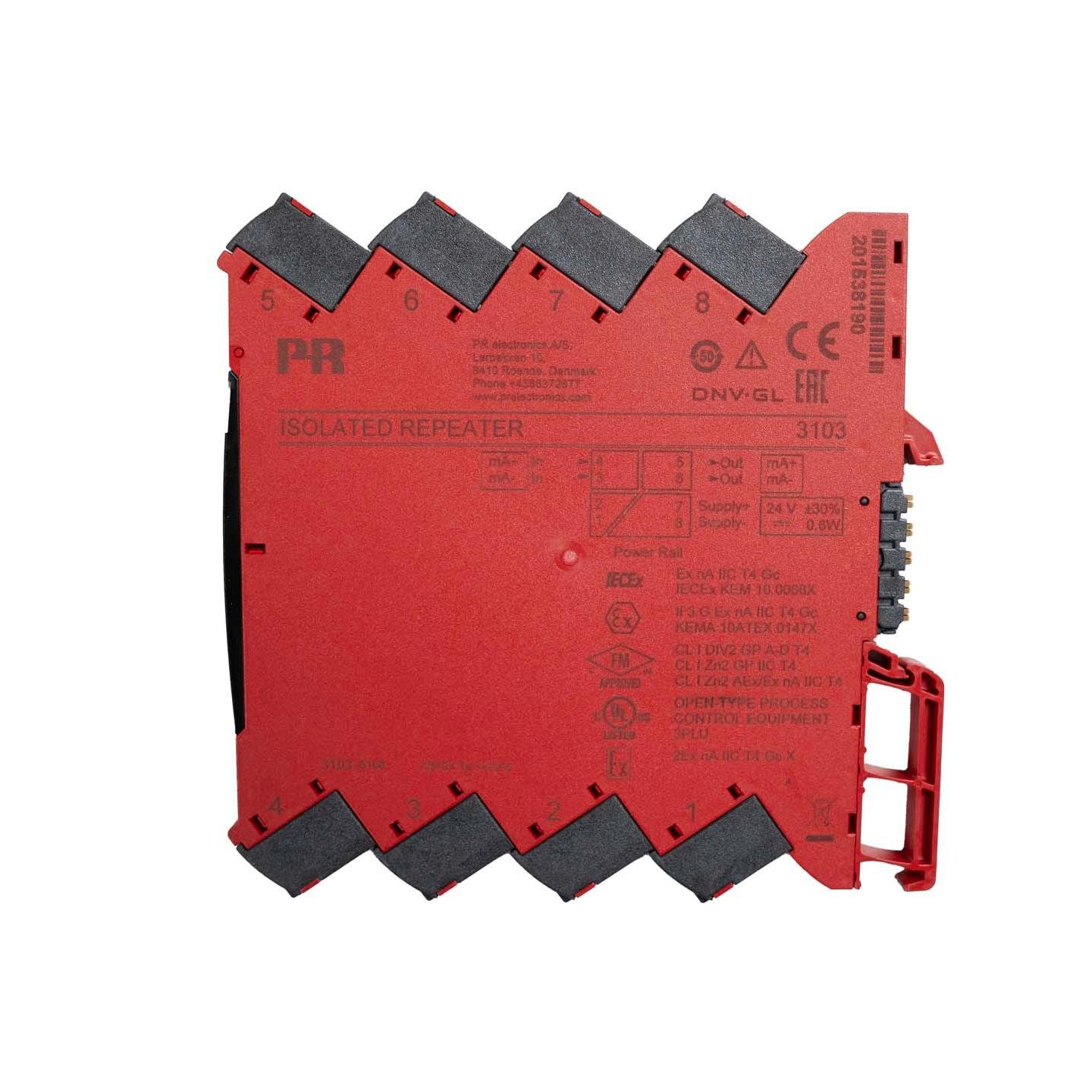

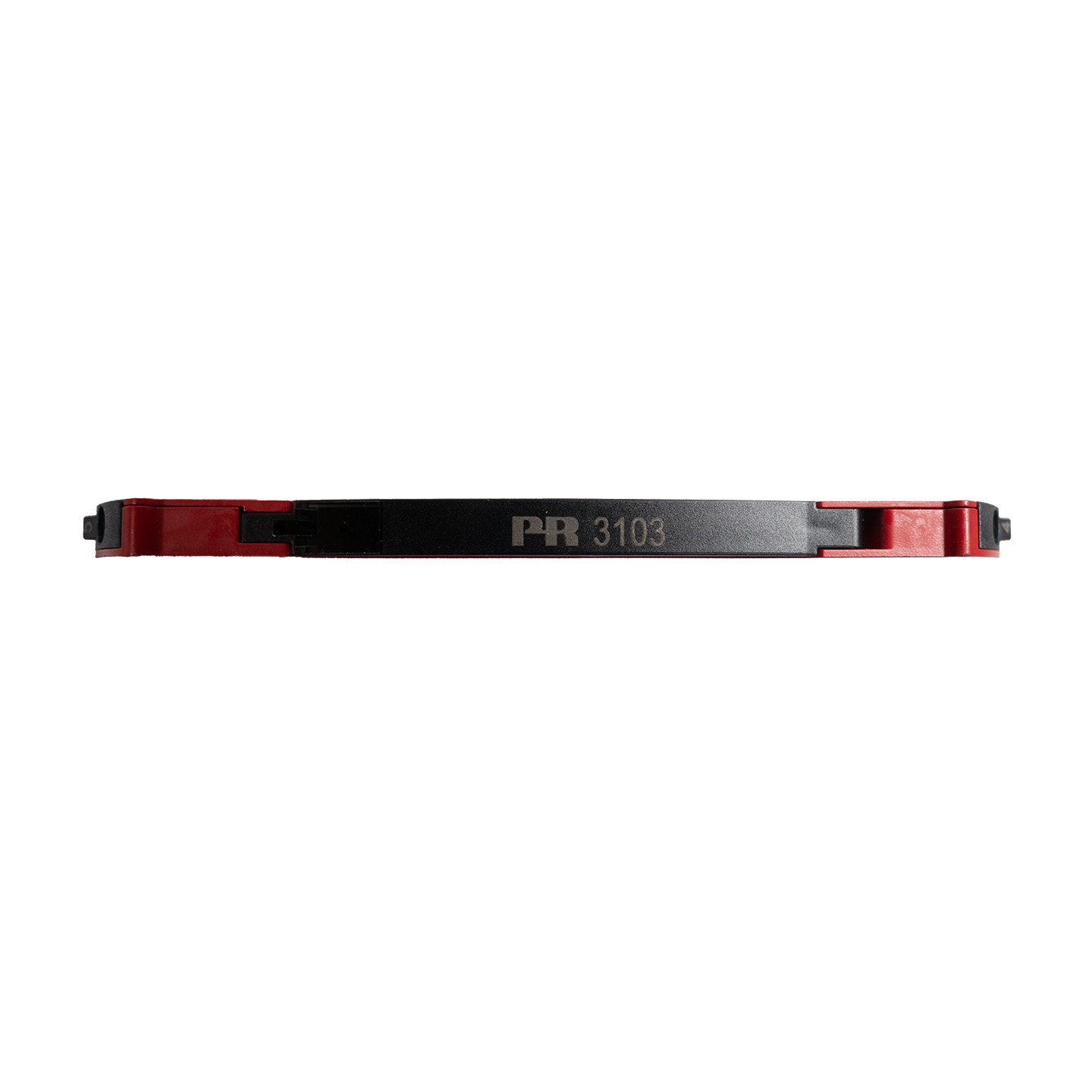

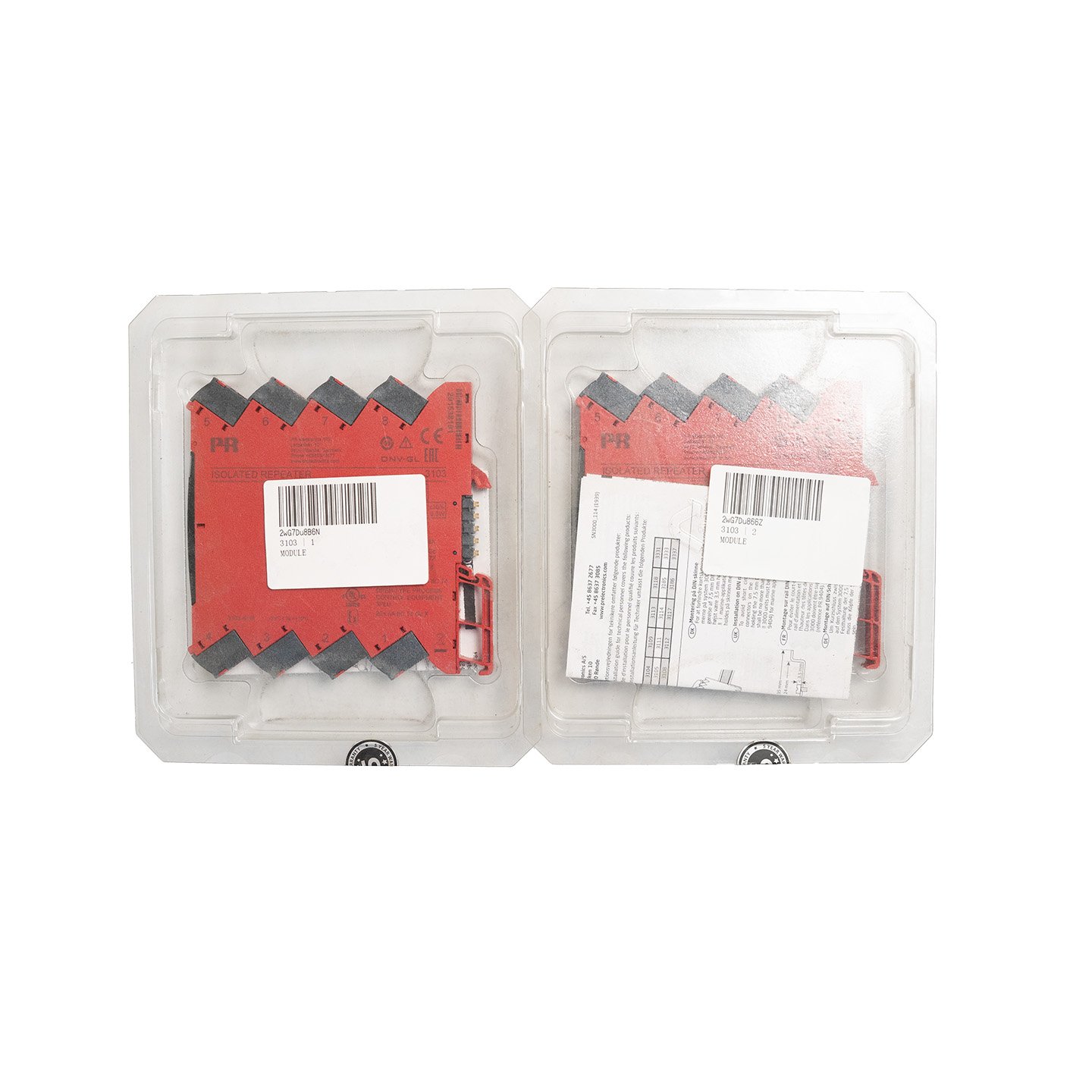

PR 3103

Description

• Functional highlights

  • Galvanic separation of analog current signals.
  • A competitive choice in terms of both price and technology for galvanic isolation of all signal types to SCADA systems or PLC equipment.
  • High 3-port isolation provides surge suppression that protects the control system from transients and noise and eliminates ground loops.
  • All terminals are over-voltage protected, polarity protected, and short-circuit protected.
  • The device can be mounted in Safe area or in Zone 2 / Division 2 areas and is approved for marine applications.

  Technical highlights

  • Flexible 24 VDC (±30%) supply via power rail or connectors.
  • Factory-calibrated measurement ranges.
  • Fast response time < 7 ms.
  • Excellent signal / noise ratio > 60 dB.
  • High galvanic isolation of 2.5 kVAC.
  • Inputs and outputs are floating and galvanically separated.
  • A green front LED indicates normal operation and malfunction.
  • Wide ambient temperature range: -25…+70°C.

  Mounting / installation

  • The narrow 6.1 mm housing allows up to 163 units per meter.
  • Units can be mounted side by side, horizontally and vertically, without an air gap on a standard DIN rail, even at 70°C ambient temperature.

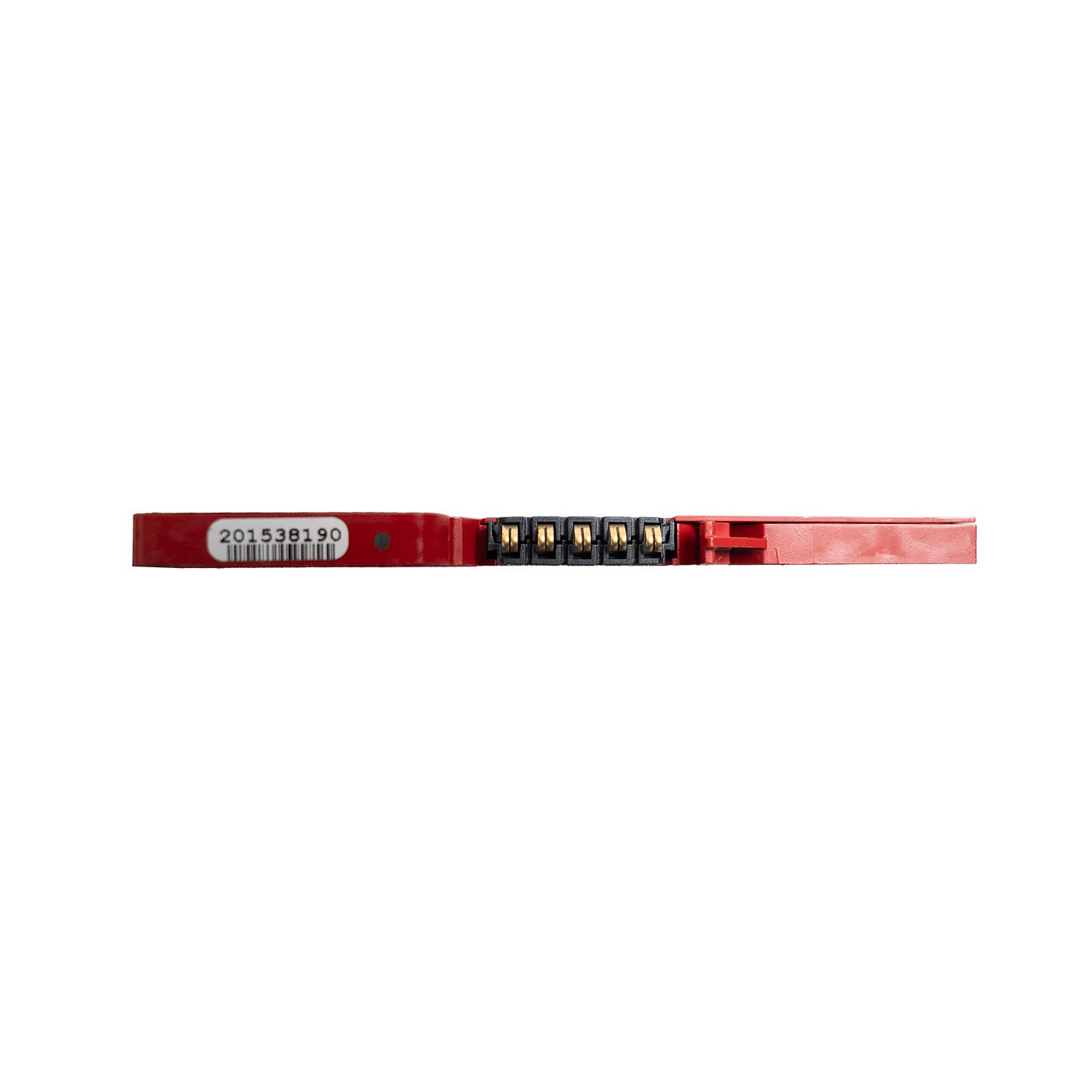

  • Units can be supplied separately or installed on the PR 9400 power rail.


    Environmental Conditions

    Operating temperature	-25°C to +70°C
    Storage temperature	-40°C to +85°C
    Calibration temperature	20…28°C
    Relative humidity	< 95% RH (non-cond.)
    Protection degree	IP20
    Installation in	Pollution degree 2 & meas. / overvoltage cat. II

    Mechanical specifications

    Dimensions (HxWxD)	113 x 6.1 x 115 mm
    Weight approx.	70 g
    DIN rail type	DIN EN 60715/35 mm
    Wire size	0.13…2.5 mm2 / AWG 26…12 stranded wire
    Screw terminal torque	0.5 Nm
    Vibration	IEC 60068-2-6
    2…25 Hz	±1.6 mm
    25…100 Hz	±4 g

    Common specifications

    Supply
    Supply voltage	16.8…31.2 VDC
    Max. required power	0.65 W
    Max. power dissipation	0.60 W
    Isolation voltage
    Isolation voltage, test / working	2.5 kVAC / 300 VAC (reinforced)
    Zone 2 / Div. 2	250 VAC
    Response time
    Response time (0…90%, 100…10%)	< 7 ms
    Signal / noise ratio	> 60 dB
    Cut-off frequency (3 dB)	> 100 Hz
    Signal dynamics, input	Analog signal chain
    Signal dynamics, output	Analog signal chain
    Accuracy	Better than 0.05%
    Temperature coefficient	< ±0.01% of span / °C
    EMC immunity influence	< ±0.5% of span
    Extended EMC immunity: NAMUR NE21, a criterion, burst	< ±1% of span

    Input specifications

    Current input
    Measurement range	0…23 mA
    Input voltage drop	< 1.5 VDC
    Input resistance	Nom. 20 Ω + PTC 50 Ω

    Output specifications

    Current output
    Signal range	0…23 mA
    Load (@ current output)	≤ 600 Ω
    Load stability	≤ 0.002% of span / 100 Ω
    Current limit	≤ 28 mA
    of span	= 0…20 mA

    I.S. / Ex marking

    ATEX	II 3 G Ex ec IIC T4 Gc
    IECEx	Ex ec IIC T4 Gc
    FM, US	Cl. I, Div. 2, Gp. A, B, C, D T4 or Cl. I, Zone 2, AEx nA IIC T4
    FM, CA	Cl. I, Div. 2, Gp. A, B, C, D T4 or Cl. I, Zone 2, Ex nA IIC T4
    EAC Ex	2Ex nA IIC T4 Gc X

    Observed authority requirements

    EMC	2014/30/EU & UK SI 2016/1091
    LVD	2014/35/EU & UK SI 2016/1101
    ATEX	2014/34/EU & UK SI 2016/1107
    RoHS	2011/65/EU & UK SI 2012/3032
    EAC	TR-CU 020/2011
    EAC Ex	TR-CU 012/2011

    Approvals

    ATEX	KEMA 10ATEX0147 X
    IECEx	KEM 10.0068X
    UKEX	DEKRA 21UKEX0055X
    c FM us	FM17US0004X / FM17CA0003X
    c UL us, UL 61010-1	E314307
    CCC	2020322310003554
    EAC Ex	EAEU KZ 7500361.01.01.08756
    DNV Marine	TAA00001RW
